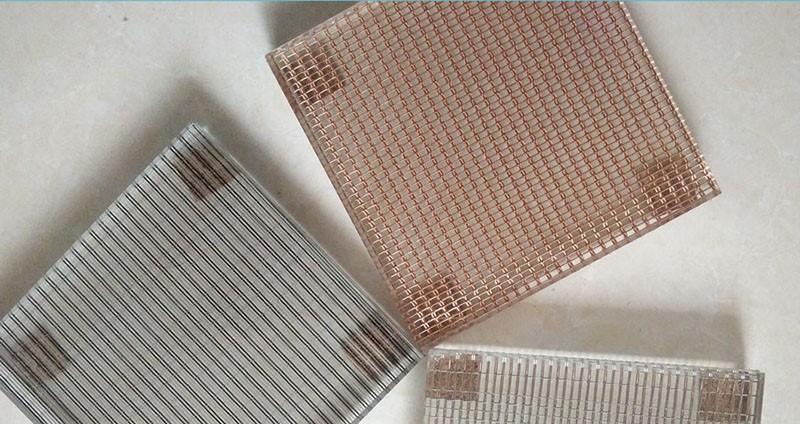

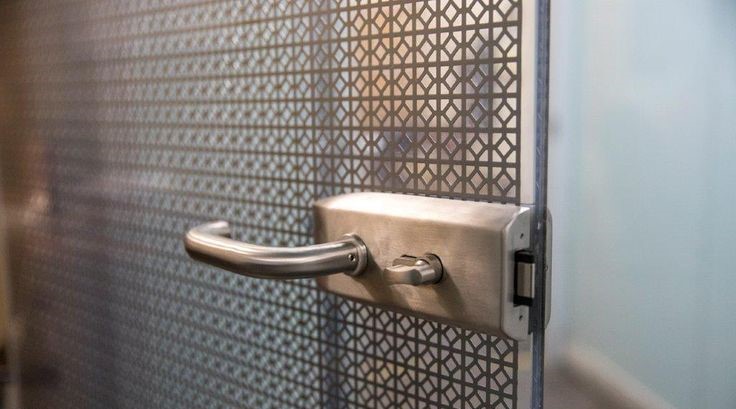

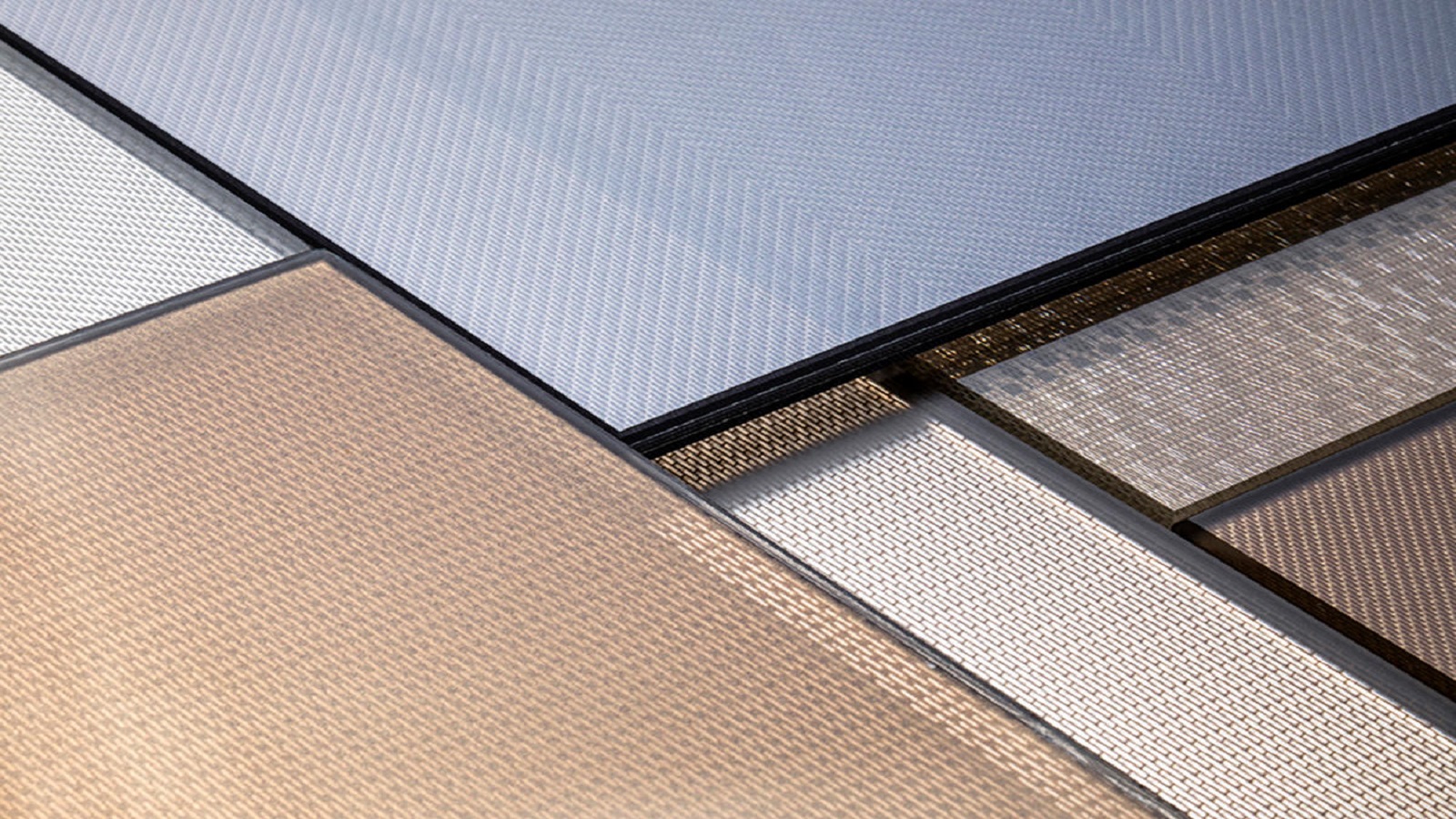

To create stunning insulated and laminated panels, we have partnered with SEFAR® from Switzerland and GKD™ Germany. We offer three types of mesh – expanded metal, woven metal, and metal-coated fabric. Each type of mesh beautifully plays with light to create unique optical effects that simply cannot be achieved with print or non-metallic materials. The mesh also diffuses sunlight, which eliminates the need for blinds and cuts down on solar heat-gain. Our SEFAR® mesh offers one-of-its-kind single-sided metal coating that allows for free expression on the glass exterior without impeding views from the interior!
| FEATURE | DESCRIPTION |
|---|---|
| Process Type | Vacuum treated followed by autoclaving for laminated glass. Vertical, fully automatic assembly line for insulated glass. |
| Glass Types | Clear, extra clear, ultra clear, tinted, solar-control coated, low-E coated |
| Additional Process Compatibility | Ceramic-frit, digital printing, sand-blasting, acid etching, holes, cut outs and notches |
| Product Enhancement | Can be converted from/to Flat Laminated & Laminated Double Glass Unit |
| Glass Thickness | 4 mm to 19 mm |
| Unit Thickness Range | 10.28 mm to 80 mm for laminated glass. 24 mm to 52 mm for insulated glass. |
| Edge Types | Rough grind, arrised, super polished |
| Interlayer Type | Kuraray SentryGlas®, EVA |
| Dimensions |
Minimum Size 300 mm x 300 mm Maximum Size 1500 mm X 4000 mm |
