Insulating glass is two or more plies of glass enclosing a hermetically sealed air space. Inherently, insulating glass increases a window's thermal performance by reducing the heat gain or loss.

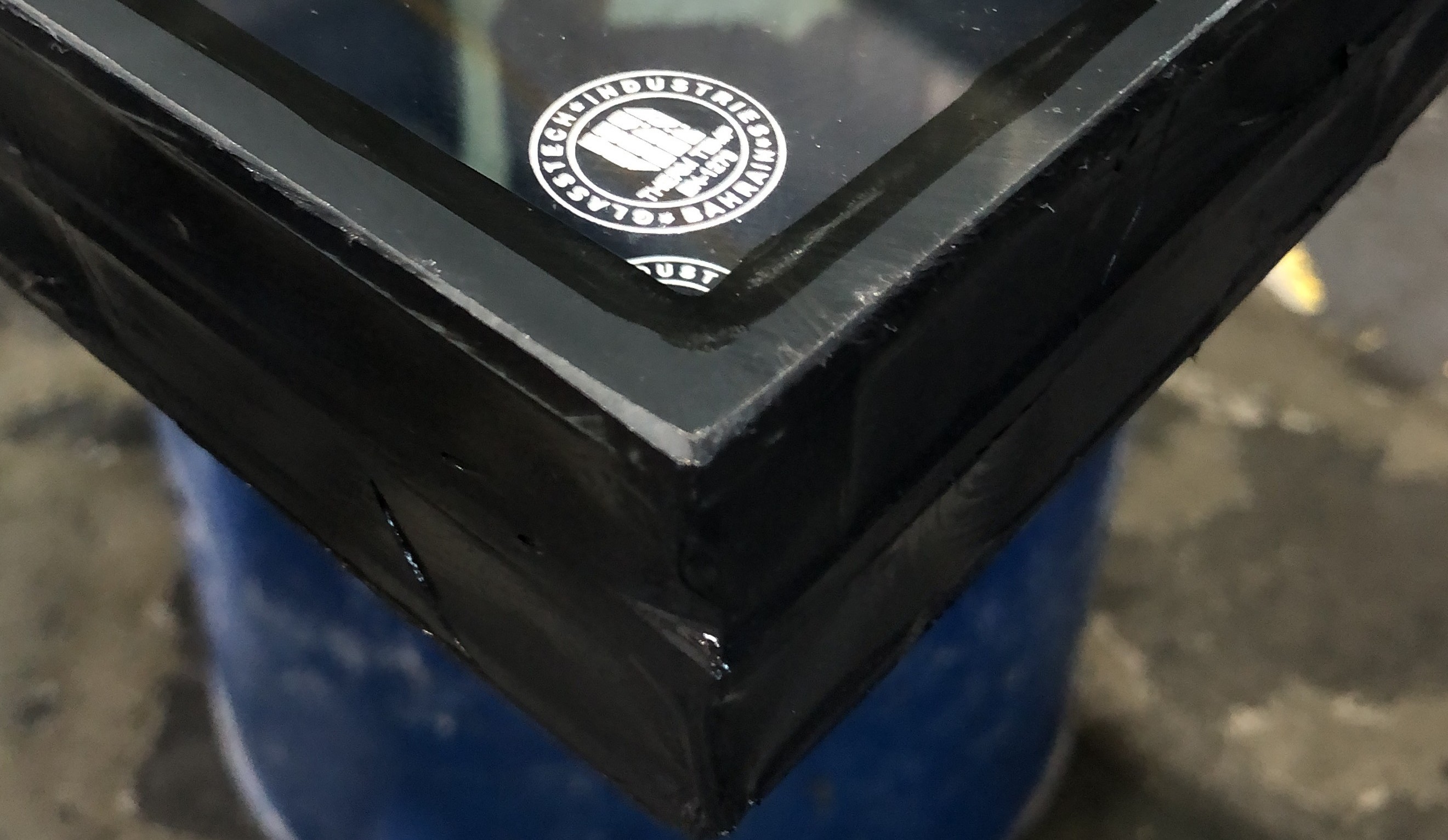

At Glasstech, insulating glass units are double sealed with a primary seal of polyisobutylene and a secondary seal of silicone. To provide a hermetically sealed and dehydrated space, the glass plies are separated by a desiccant-filled spacer with three bent corners and one keyed-soldered The desiccant absorbs the insulating glass unit's internal moisture
| FEATURE | DESCRIPTION |
|---|---|
| Process Type | Vertical Insulated Glass Production Line, Type – LV 35/25 HLP |
| Glass Types | Clear, extra clear, ultra clear, tinted, solar-control coated, low-E coated |
| Additional Process Compatibility | Ceramic-frit, digital printing, sand-blasting, acid-etching and holes |
| Product Enhancement | Can be constructed with (curved glass), (laminated glass), FIRE-SAFETY product range, SECURITY product range and CREATIONS product range |
| Glass Thickness | 12 mm to 52 mm |
| Edge Types | Rough grind, arrised, Polished |
| Air Fill Type | Atmospheric air or argon (Ag) |
| Desiccant Make | Natergy (China), Nadex (Europe) |
| Dimensions |
Maximum Size: 2500 x 5000 mm Minimum Size: 180 x 350mm， Spacer Thick: 6mm, 9mm, 12mm, 16mm, 20mm. Other spacer widths are available according to customer demands. |
