Fully toughened heat treated safety glass, is approximately five times stronger than annealed glass of the same thickness and configuration. In the event of breakage, the panel will fracture into relatively small harmless particles. It has greater resistance to thermal stress compared to annealed glass (can be subjected to temperatures up to 290°C).It is designated as a Safety glass as per the standards and can be used for frameless glass façades and frameless glass doors etc.

Technical Specification

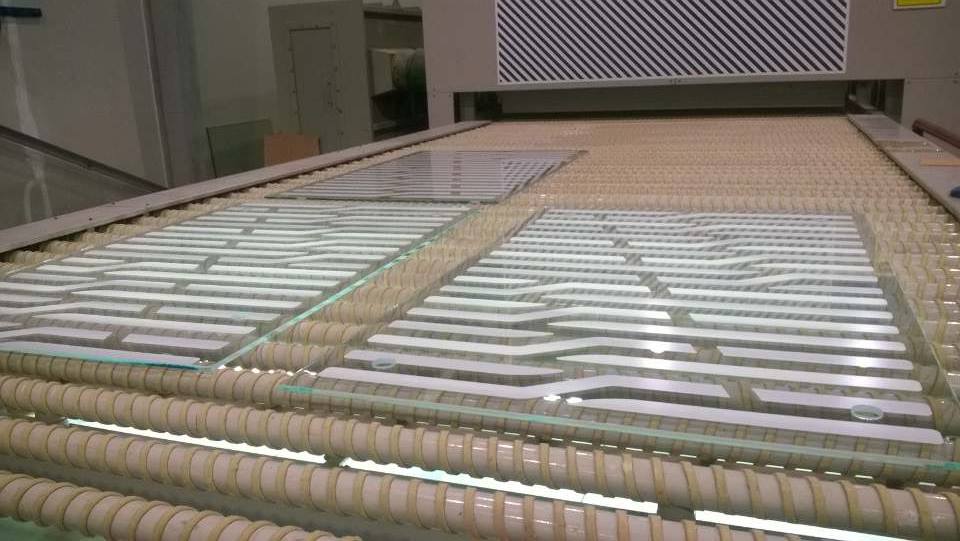

Process Type TAMGLASS Horizontal Tempering Furnace – Pro E Magnum 2860 – CS – 20 With CGSB
Glass Types Clear, extra clear, ultra clear, tinted, solar-control coated, low-E coated
Additional Process Compatibility Ceramic-frit, digital printing, sand-blasting, acid etching, holes, cut-outs and notches
Product Enhancement Can be converted to insulated glass and laminated glass
Glass Thickness Range 4 mm to 19 mm
Edge Types Rough grind, Edge arrised, Matt finished, Polished Edges
Emissivity Minimum 0.01**
Compressive Stress 67 MPa (9,717 psi) minimum 69 MPa (10,007 psi) minimum
Dimensions Minimum Size 200 mm x 300 mm
Maximum Size 2440 mm x 3600 mm (4 mm and 5 mm)
2800 mm x 6000 mm (Clear Glass)
2750 mm x 5000 mm (Coated Glasses)
